SmartVDO Edge systems
34–275 TOPS and 2070 FP4 TFLOPS. One SDK across the line.
Included free with YUAN hardware, delivered through a supported evaluation path — engineer answer within 48 hours.
SmartVDO Edge systems
Six photographed systems cover Jetson Thor, AGX Orin, Orin NX Super, and Orin Nano Super. The same NexVDO SDK spans the line.

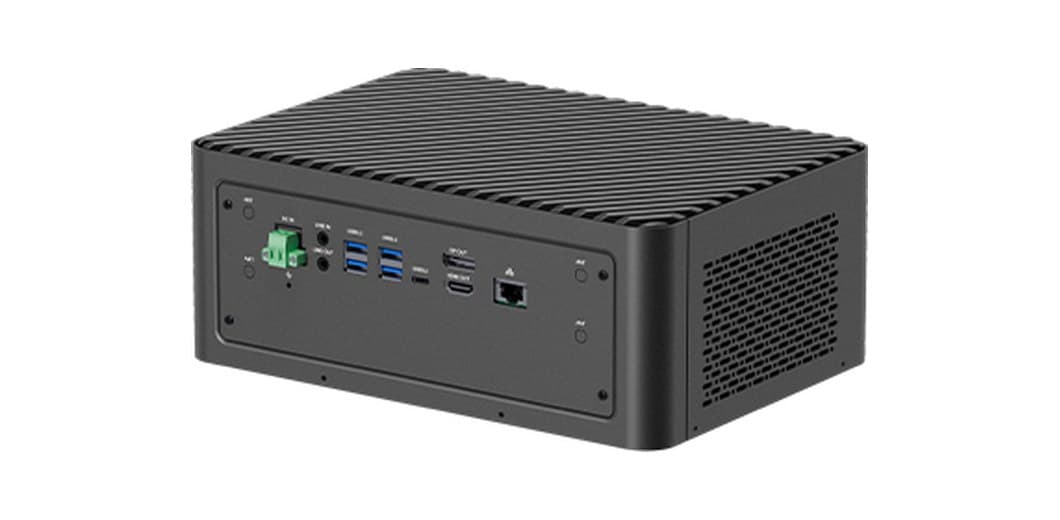

Highly Expandable AI Edge, up to 2070 FP4 TFLOPS w/ 1×HDMI2.0, 1×DP1.4.Fit pathBroadcast / ProAV
Jetson Thor T5000 / T4000 · 2070 / 1200 FP4 TFLOPS · 16× MIPI CSI-2 lanes

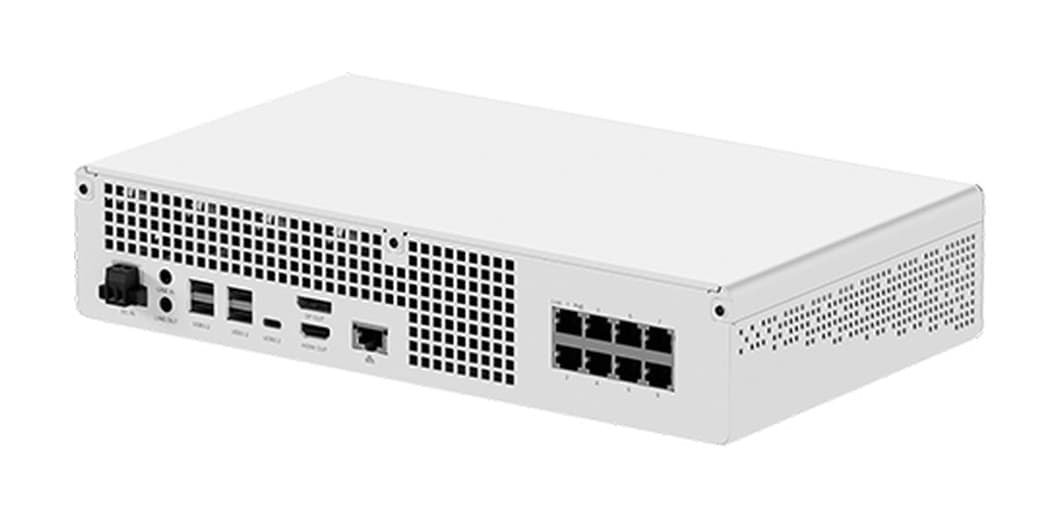

Highly Expandable AI Edge, Up to 2070 FP4 TFLOPS, 8x PoE, HDMI, DP.Fit pathSmart NVR
Jetson Thor T5000 / T4000 · 2070 / 1200 FP4 TFLOPS · 8-port PoE power (PSE, 15 W/port)

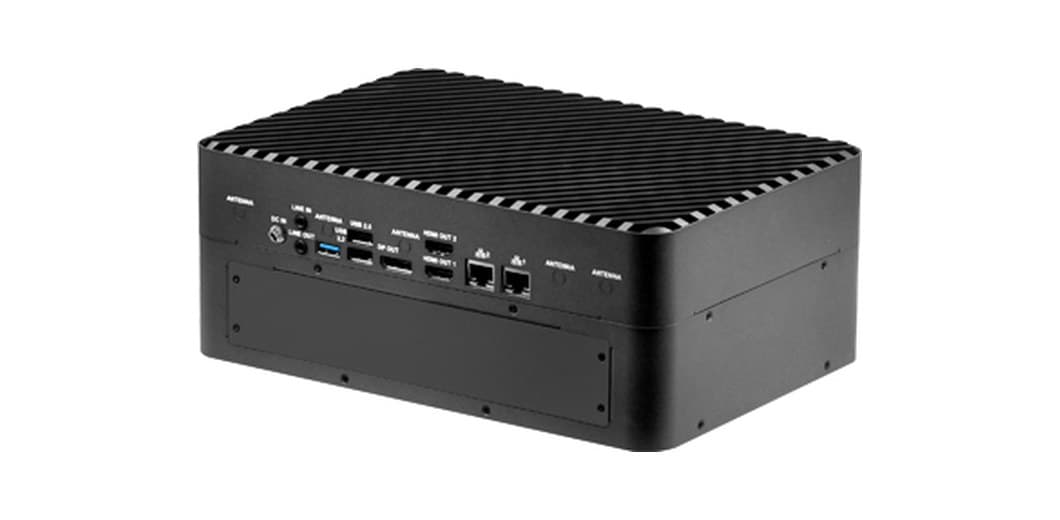

Highly Integrated AI Server, Provide 275 TOPS and Expandability. Base, 5G, and PSE variants.Fit pathIndustrial monitoring
Jetson AGX Orin 32 / 64 GB · 200 / 275 TOPS · 16× MIPI CSI-2 lanes

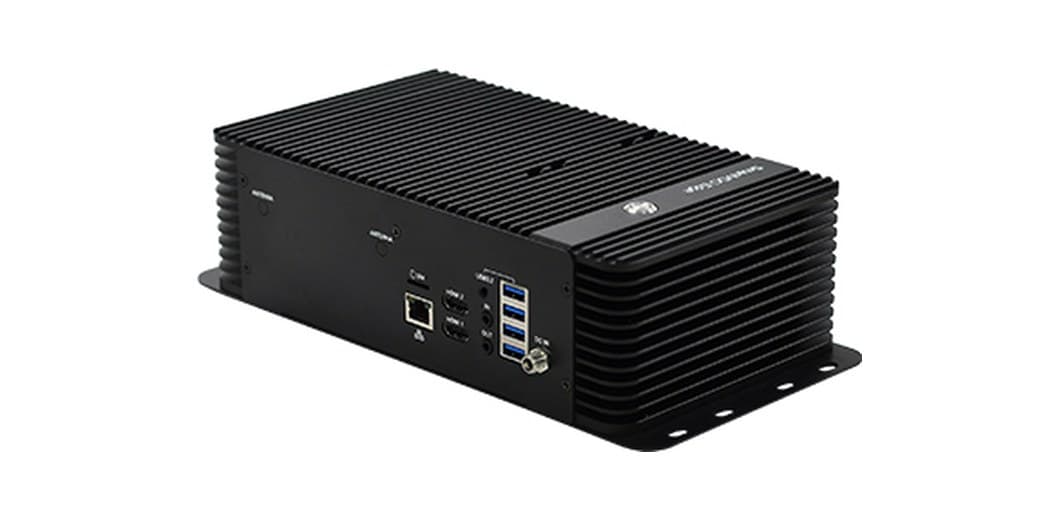

Compact & Fan-less Edge AI Platform. The PSE variant adds 4×PSE for IP cameras.Fit pathVideo AI
Jetson Orin NX Super 8 / 16 GB · 117 / 157 TOPS · 8× MIPI CSI-2 lanes

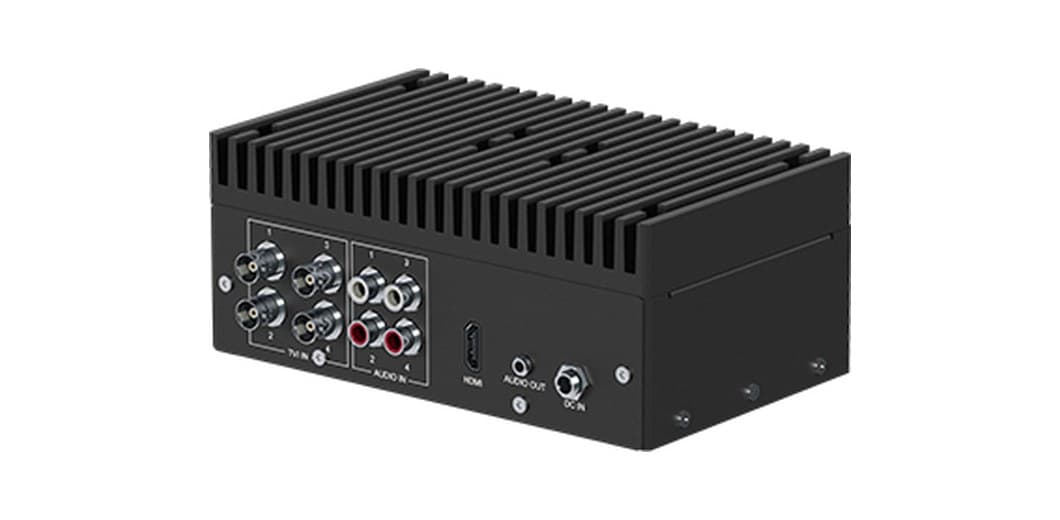

Card Size AI Edge with Multi AIoT Expansion. Four TVI inputs and a 17-pin DIO connector support an analog-HD retrofit path.Fit pathSmart city
Orin NX / Nano Super · 34 / 67 / 117 / 157 TOPS · 4× TVI · RS485 + 4 DI + 4 DO

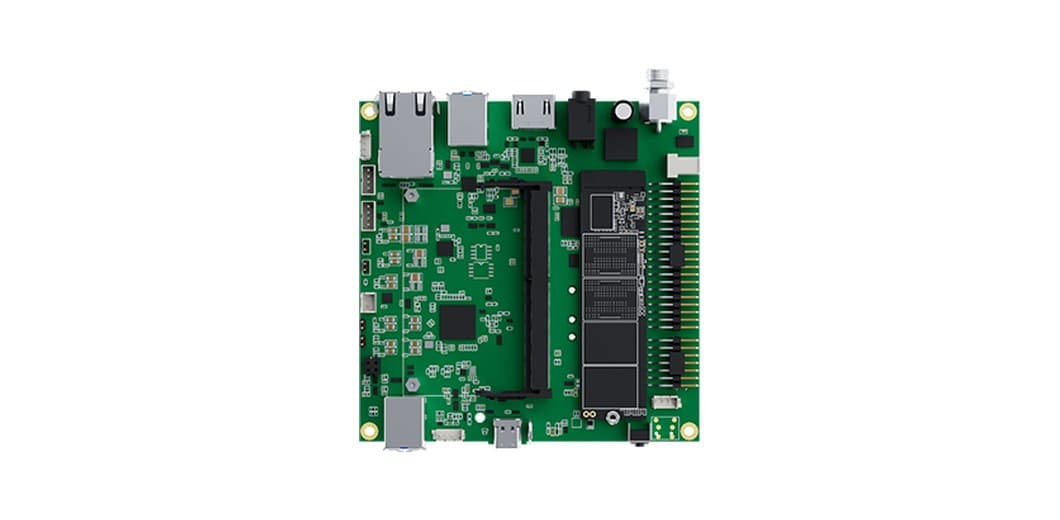

Compact Edge AI. This Pandora carrier board pairs Orin NX Super with four M.2 slots and an 8-lane MIPI CSI-2 path.Fit pathDeveloper path
Jetson Orin NX Super 8 / 16 GB · 117 / 157 TOPS · 4× M.2 · 114.9 × 115 mm
Comparison
Ingest means physical camera or capture input. Expansion lists the published M.2 and PCIe paths. See the documentation library for release artifacts.
| Model | Jetson module | AI performance | Memory | Ingest | Expansion | Display |
|---|---|---|---|---|---|---|
| EDG6N0-S T5X | Thor T5000 / T4000 | 2070 / 1200 FP4 TFLOPS | 128 / 64 GB LPDDR5X | 16× MIPI CSI-2 lanes | PCIe Gen5×4; M.2 E/M/B-key | HDMI 2.0 + DP 1.4, both 4K60 |
| EDG6N0-S T5X NVR | Thor T5000 / T4000 | 2070 / 1200 FP4 TFLOPS | 128 / 64 GB LPDDR5X | 8-port PoE power (PSE, 15 W/port) | M.2 E/M/B-key; 2× 2.5-inch SATA | HDMI 2.0 + DP 1.4, both 4K60 |
| VPP6N0-S AGX | AGX Orin 32 / 64 GB | 200 / 275 TOPS | 32 / 64 GB LPDDR5 | 16× MIPI CSI-2 lanes | 2× PCIe Gen3×4; M.2 E/M/B-key | 2× HDMI 2.0 + 1× DP; any 2 at once |
| VPP6N0-S AGX 5G | AGX Orin 32 / 64 GB | 200 / 275 TOPS | 32 / 64 GB LPDDR5 | 16× MIPI CSI-2 lanes | 3× M.2 M-key + 1× E-key | 2× HDMI 2.0 + 1× DP; any 2 at once |
| VPP6N0-S AGX PSE | AGX Orin 32 / 64 GB | 200 / 275 TOPS | 32 / 64 GB LPDDR5 | 8× PSE | M.2 E/M/B-key; PSE expansion board | Display detail — pending publication |
| VPP6N0-S-W NX | Orin NX Super 8 / 16 GB | 117 / 157 TOPS | 8 / 16 GB LPDDR5 | 8× MIPI CSI-2 lanes | 3× M.2 M-key | 2× HDMI 2.0 |
| VPP6N0-S-W NX PSE | Orin NX Super 8 / 16 GB | 117 / 157 TOPS | 8 / 16 GB LPDDR5 | 8× MIPI CSI-2 lanes; 4× PSE | 2× M.2 M-key | 2× HDMI 2.0 |
| EDG6N0-C-W ONX 4TVI DIO | Orin NX / Nano Super | 157 / 117 / 67 / 34 TOPS | 16 / 8 / 8 / 4 GB | 4× TVI | 1× M.2 M-key | 1× HDMI 2.0, 4K60 |
| PND6N0 MB ONX | Orin NX Super 8 / 16 GB | 117 / 157 TOPS | 8 / 16 GB LPDDR5 | 8× MIPI CSI-2 lanes | 4× M.2 | 1× HDMI 2.0, 4K60 |
Pandora developer kit
Every Pandora SKU uses a 145×123×66 mm chassis, ships with a pre-installed 128 GB SSD, and provides dual GbE. JetPack 6.2 or higher is the stated baseline.
The M.2 path is designated for capture cards. A Nano-SIM slot makes the cellular path ready for a 5G or 4G module. SmartHub covers mass onboarding, status monitoring, remote diagnostics, container management, and OTA upgrades.
Prototype on Pandora. Deploy on SmartVDO Edge systems. The same NexVDO SDK spans both paths.
Capture-card families

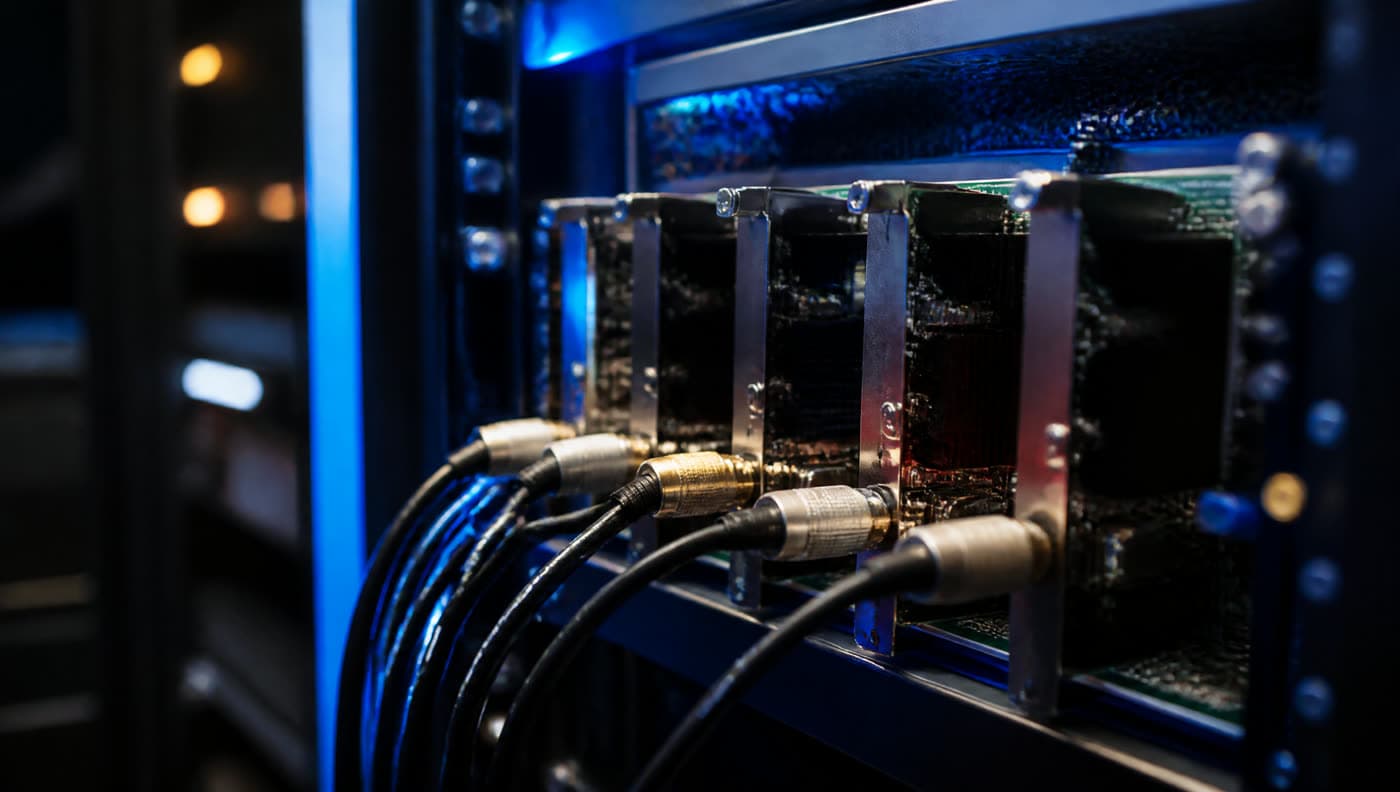

YUAN capture hardware spans PCIe, M.2, MiniPCIe, and USB paths for Jetson and x86 systems. NexVDO SDK covers the line.
Raw-frame capture with Direct-to-GPU paths from SD through 8K.SC750N1-L HDMI2.1 · SC730N2 M.2 HDMI2.0
On-card H.26X encoding produces raw and compressed output with zero CPU encoding load.SC5C0N8 SDI/HDMI · SC5A0N1 M2 SDI/HDMI
UVC-compliant, driver-free capture for Windows, macOS, and Linux, with models up to 8K60.UB700G HDMI2.1 HDR HID+ · UB575G HDMI2.1 HDR HID+
Bidirectional 4K60 12G-SDI I/O with Genlock, plus FPGA bridges for NVIDIA Holoscan streams.SC750N1O1 12G-SDI Genlock · Dual HDMI2.0/12G-SDI HSB
NPN PREFERRED PARTNER · 2025
YUAN is an NVIDIA NPN Preferred Partner (2025). The SmartVDO Edge system line is built on Jetson — Jetson Thor to Orin Nano — with the Pandora developer kit alongside it. NexVDO rides the NVIDIA stack rather than replacing any part of it, and device and fleet management is answered through the Allxon partnership.
You are building your own device — NexVDO SDK plus YUAN hardware inside your product.
Start at the SDK →You need an integrated stack delivered and supported — hardware, software, and integration through Neteon.
Request scoping →Bring the camera mix, compute target, and deployment constraints. An engineer will map the system, capture path, and NexVDO SDK modules within 48 hours.
Request an evaluationNeed the software path first? Start with Video AI.
