Keep video near the cameras
Record and analyze in the edge system. Avoid moving every camera stream into a remote processing path.
Solutions — Smart NVR
Recording and analysis in one edge box.
Deploy recording and on-box detection across IP-camera and PoE camera topologies without shipping video to someone else's cloud.
Why edge for Smart NVR
Retain footage on the box

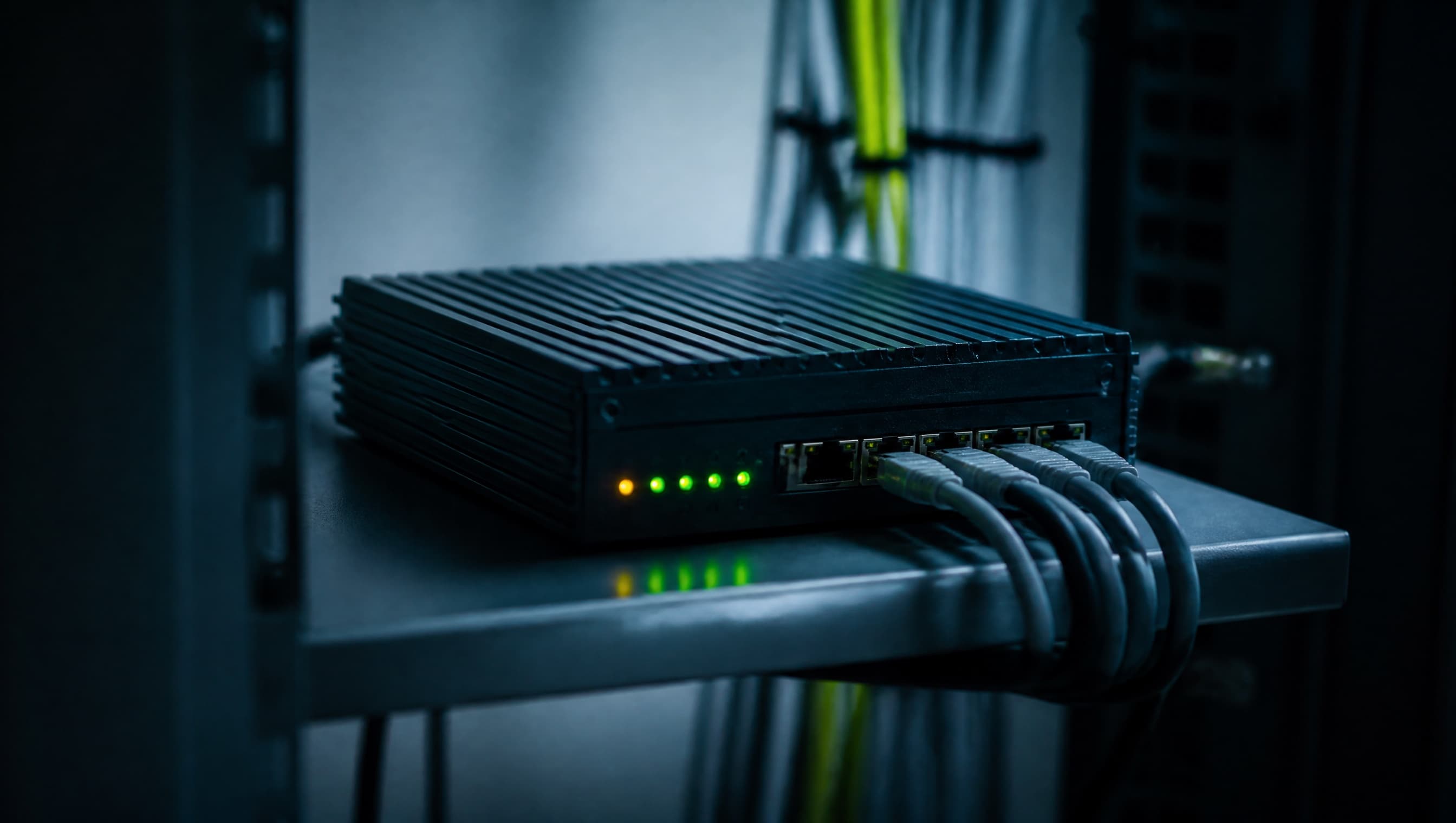

The EDG6N0-S T5X NVR provides local SATA storage for recorder data.
Power cameras at the edge
PSE variants supply power to IP cameras from the same edge system that runs the pipeline.
Proven patterns
Start with the camera job. Pair the required SDK modules with real YUAN hardware.
0124/7 recording
Build an always-on recorder pattern with local data storage and on-box playback.
02Scheduled and event recording
Use application scheduling and Analysis events to decide when Record retains footage.
03On-box detection
Run people, vehicle, face, and behavior detection in the edge system and keep video near the camera network.
04API-first recorder control
Use YUAN's HTTP RESTful and WebSocket SmartNVR patterns as an application reference for what you build with Record and Analysis. NexVDO endpoint details are published with evaluation access.
05Powered IP-camera topology
Use PSE variants to power IP cameras at the edge box, then route network-camera feeds into Capture, Record, and Analysis.
06Cross-camera tracking at multi-site scale
For multi-site scope, use SmartVMS — a cross-camera tracking solution stack for greenfield deployments. The adjacent solution link routes to that architecture.
Capture → record → analyze
From powered cameras to recorded events.

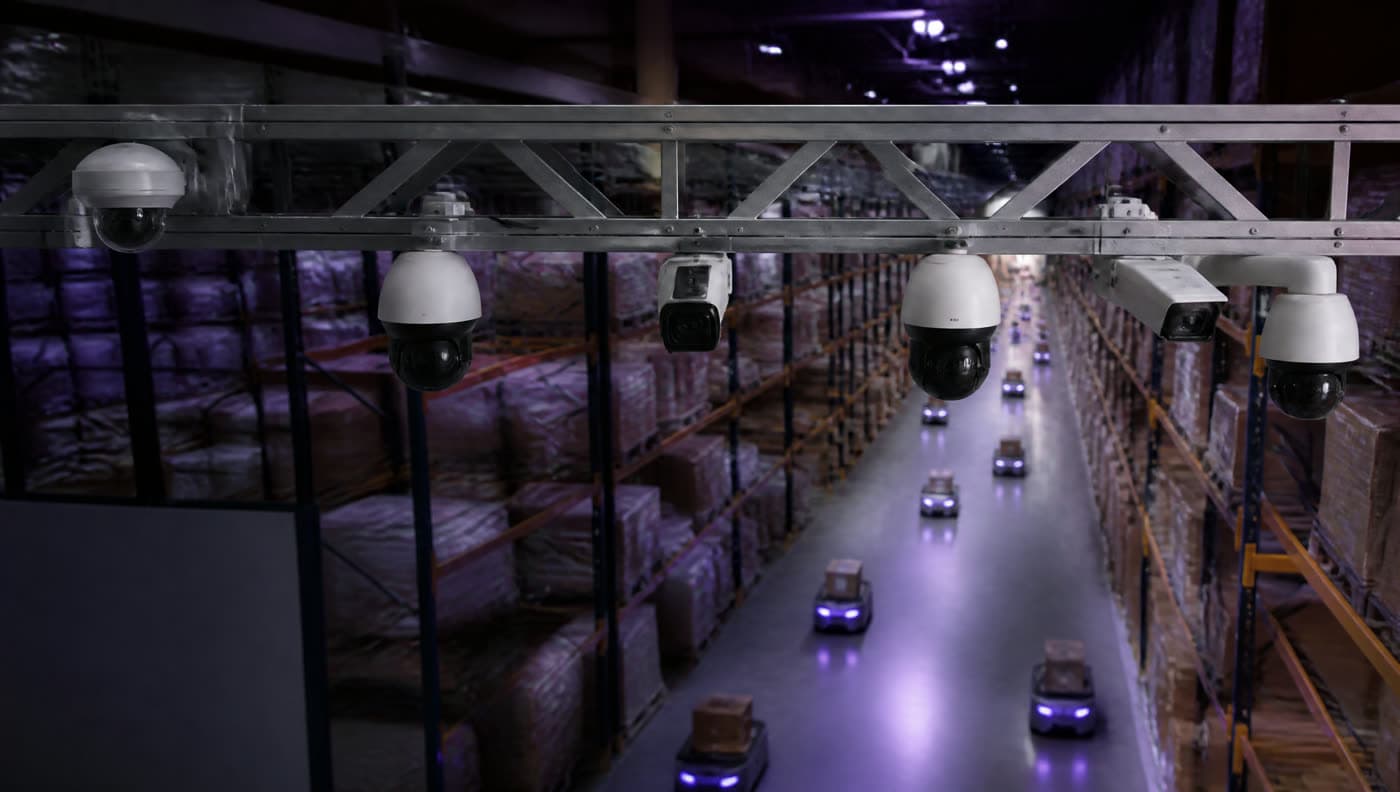

IP cameras connect through PSE ports. NexVDO Capture accepts network-camera feeds. Record provides the recording path. Analysis processes detection on the edge. The application layer sets 24/7, scheduled, or event recording and exposes recorder control.
Pipeline facts
Published camera, recording, detection, and hardware facts for an edge recorder. Unpublished SDK mappings remain marked.
| Pipeline job | Published path | Hardware | SDK module | Status |
|---|---|---|---|---|
| Camera ingest | Network cameras | SmartVDO Edge systems | Capture | Published |
| Recording modes | 24/7, scheduled, event | EDG6N0-S T5X NVR | Record | Recorder-pattern mapping — published with evaluation access |
| On-box detection | People, vehicles, faces, behavior | VPP6N0-S AGX PSE / VPP6N0-S-W NX PSE | Analysis | Published reference pattern |
| Camera power | 8-port or 4-port PSE topology | EDG6N0-S T5X NVR / VPP6N0-S-W NX PSE | Hardware pairing | Published |
| Local recorder storage | 2×2.5-inch SATA HDD | EDG6N0-S T5X NVR | Record | Published |
| Recorder control | HTTP RESTful + WebSocket reference | YUAN SmartNVR reference | Record + Analysis | SDK API mapping — published with evaluation access |
| Cross-camera scale | SmartVMS solution stack | SmartVDO Edge systems | Record + Analysis | Reference architecture — in preparation |
Build resources
Published material stays with the supported evaluation path. Missing artifacts stay visible as honest states.
Sample pairings
Capture hardware, edge systems, and SDK modules arranged by pipeline job.
Published with evaluation access
Reference architecture
A signal-to-output architecture for this vertical.
In preparation
Developer hub
Module guides, support routes, and integration notes.
Buying a product?
You are building your own device — NexVDO SDK plus YUAN hardware inside your product.
Start at the SDK →Commissioning a system?
You need an integrated stack delivered and supported — hardware, software, and integration through Neteon.
Request scoping →Need a human?
Included free with YUAN hardware, delivered through a supported evaluation path — engineer answer within 48 hours.
Evaluate on real hardware
Request an evaluation and get a substantive answer — from an engineer — within 48 hours. Evaluation hardware ships from U.S. stock.
Request an evaluation
